Kustom Beginner’s Guide – Part 4 – Music Controls

Kustom Music Controls

KLWP Music Controls are the next step in this Kustom Beginner's guide. After this part you will be able to control your music player and display cover art through Kustom.

Kustom Beginner’s Guide – Part 4 – Music Controls

My music controls will have a look on the Kustom Material Music Komponent by +Sebastian Spindler since it covers everything you need. I will explain it part by part.

Kustom Bridged

To get started

First you have to make sure that your Music Player supports the Android media service extension (source), otherwise it won't work with KLWP. Kustom also has to have notification access in Android settings.

Creating Music Controls

Most Music Controls consist of Play/Pause/Next/Previous buttons, cover art and a progress bar. All this is very easy to make in Kustom. When we have a look at kwerdenker's Komponent you can see that the background is the cover art, a bar contains the music controls and the artist and title info is stacked on top of this bar.

Kustom Music Komponent

Cover Art

In the example Cover Art is added trough a bitmap and with advanced editing set to "$mi(cover)$" as the formula.

Kustom Cover Art Kustom Cover Art Formula

There is another way to add covert art which gives you more options. Add a shape and pick your desired form (square, circle, etc.). Then go to "FX" and change texture to bitmap and enter the Cover Art Formula through the advanced editor.

Kustom Shape Cover ArtKustom Shape Cover Art

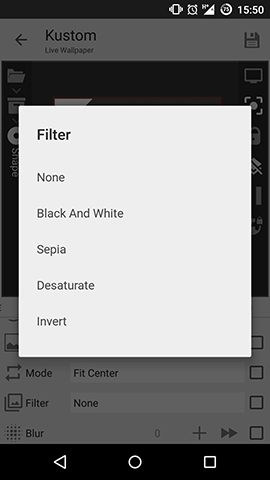

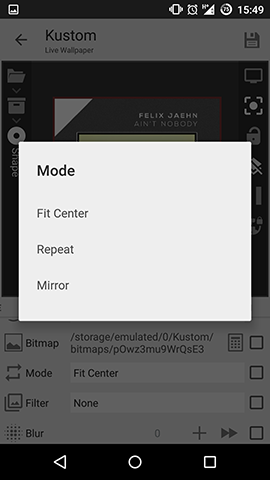

Now you have several options. Mode will stay "Fit Center" most of the time but some filters might be a nice touch.

Kustom Cover Art Shape Kustom Cover Art Shape

You can also blur, dim and add shadow to the Cover Art.

Kustom Cover Art Shape

Track Info

Track Info as seen on the example can be added by simple text items to your Music Controls. Just go into the text editor and and the following formulas.

Kustom Title Formula Kustom Artist Formula

Music Controls

Sebastian uses an Icon Font for his music buttons. The advantage is the easy use and scalability. I think the Icon Fonts are by +Aleksandar Tešić (G+ Post) and you can find them here.

The Play/Pause Icon consists of a background shape and the icon which changes dynamically on touch. To accomplish that he used the formula

$if(mi(state)!=PLAYING,W,o)$

So, if the music is not playing then show "Play" (W) else show "Pause" (o).

You can use images also, the process is the same but your formula changes with the image locations as then and else.

Kustom Play Pause Kustom Play Pause Formula

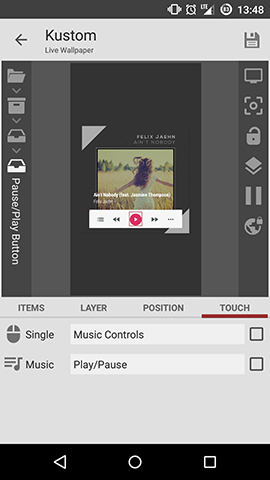

Now you need the add the on touch action, do so accordingly to the next screen.

Kustom Play Touch

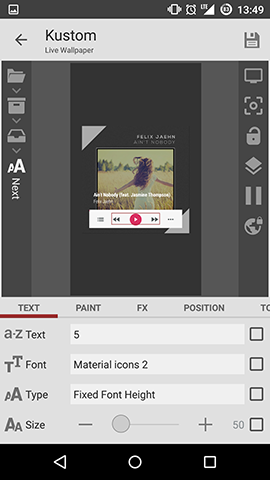

The next song control is done the same way as above.

Kustom NextKustom Next Touch

And also the previouse song control can be done the same way.

Kustom Previouse Kustom Previouse Touch

On the left side there is a start app button. You can do with that whatever you like.

Kustom StartApp Kustom StartApp Touch

On the right side there is a button to go into Kustom. Again this is not crucial for a music player.

Kustom Dots Kustom Dots Touch

asdasd

Progress Bar

Note: The preset uses the old method because it was created before actual progress bars were implemented into Kustom. The new method is explained beneath.

Using shapes

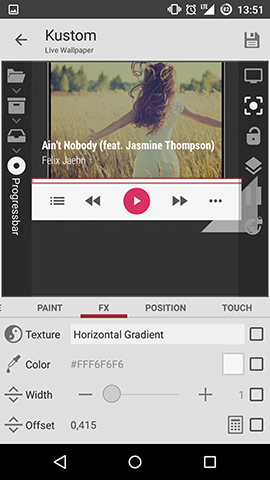

Here a rectangle shape is used with texture set to horizontal gradient. On the offset you have to go to the advanced editor and...

Kustom ProgressbarKustom Progress Bar FX

... change it to "$mi(percent)$".

Kustom Progress Bar Formula

Using Progress Bar item

Kustom introduced an easier way to create progress bars, the progress bar item.

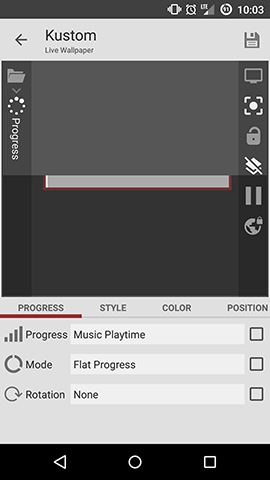

Simply add one to your preset and set the progress to "Music Playtime"

Kustom Real Progress bar Kustom Progress

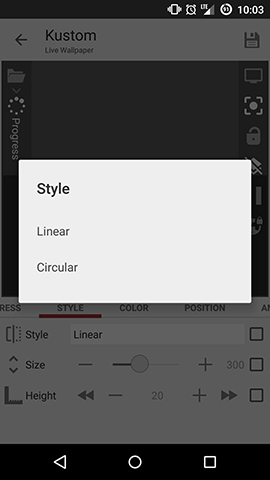

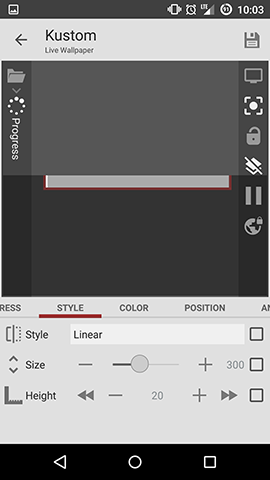

You can change the style to Circular if you like.

Kustom Progress StyleKustom Progress Style

Color and Color Mode can be adjusted also.

Kustom Progress ColorKustom Color Mode

This should give you various options for your progress bars.

Conclusion

Now at the end of the Kustom Music Controls guide you should easily be able to create your own music controls.

The next part of the Kustom Beginner's guide will be about maps.

3 Comments

  1. Thanks for this series, I would totally lost without it.

    Question for you, I have a music player preset, but the formulas, $mi()$, and Kustom actions seem to reference any app that can have audio access, not just a music player, and whatever app last played audio.

    For instance, if I listen to Play Music, my music player correctly pulls cover art and player controls work perfectly.

    However, as soon as I open another app, like CBS sports, which has video content, the music controls stop working, cover art disappear, and if I touch and icon with the action “open music player”, if opens CBS. This is quite annoying and reduces the value of these controls.

    Is this something you have experienced? How did you solve it?

    Do you know of a way to force Kustom to use a specific media player, instead of which ever was last used?

    • In KLWP: Settings > Preferred Music Player

      Pick the one you want and it should just work with that one… usually
